Description:
·Simple on-site processing
·Mating safety provided by keyed housings
·Mutiple plugging and unplugging cycles
·Accomodates PV cable with deferent insulation diamaters
·High Voltage and Current carrying capacity
·TUV and CE approved
·Competitive price
Technical Data:
| Insulation Material: | PPO | Contact material: | Copper,Tin plated |
Rated current: | 30A(2.5mm2), 50A(4mm2,6mm2) | Insertion force: | Max. 50N |
| Rated Voltage: | 1000V/1500V DC | Withdrawal force: | Min. 50N |
| Test voltage: | 8kV(50Hz,1min) | Ambient temperature range: | -40℃~+90℃ |
| Contact resistance: | <0.5mΩ | Flame class: | UL94-V0 |
| Waterproof protection: | IP68 | Connecting system: | Crimping connection |
| Overvoltage degree: | CATIII/2 | Suitable cable cross section: | 2.5/4/6/10mm2, 14/12/10/8AWG |
Wechat scan code or copy link mobile phone open
X

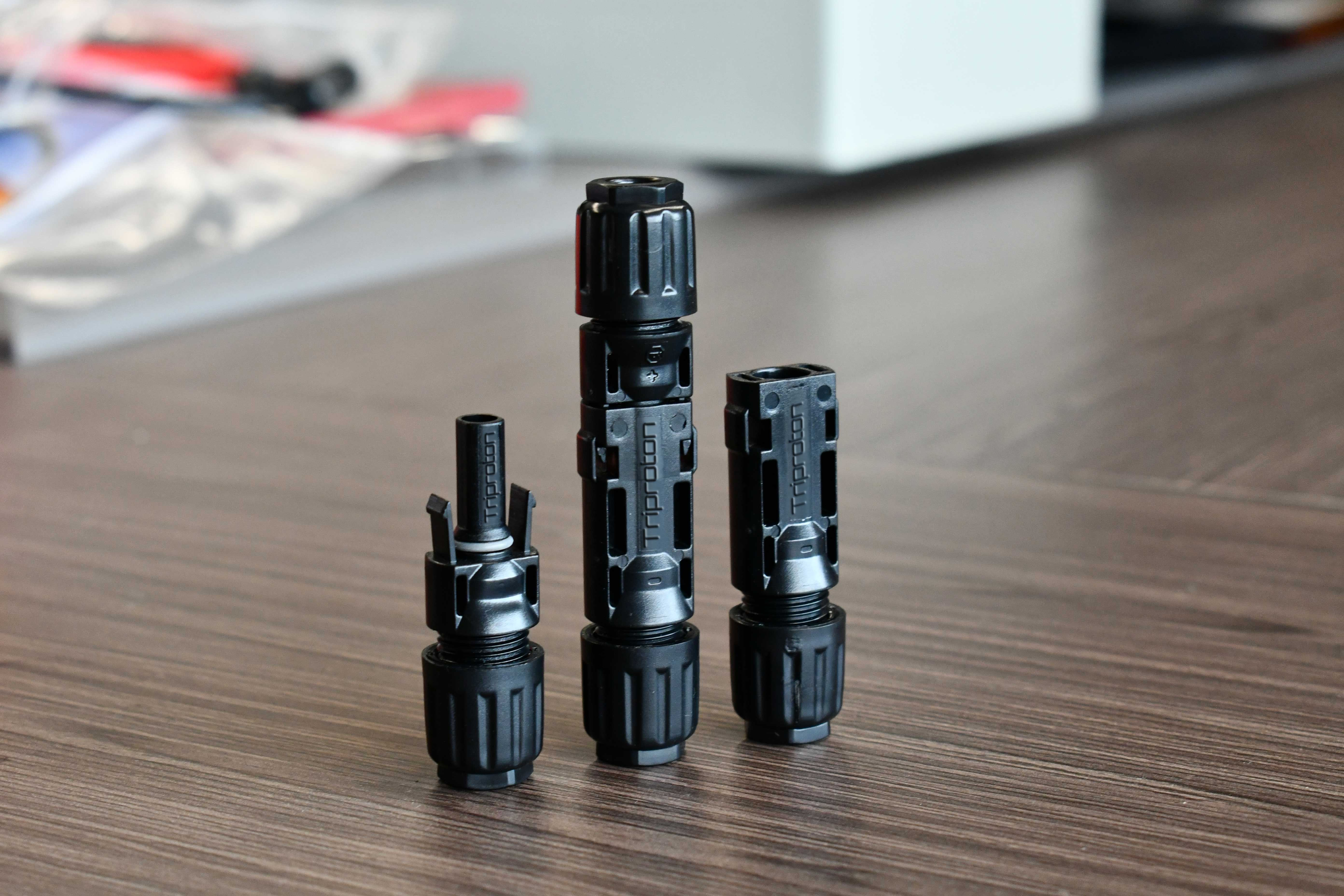

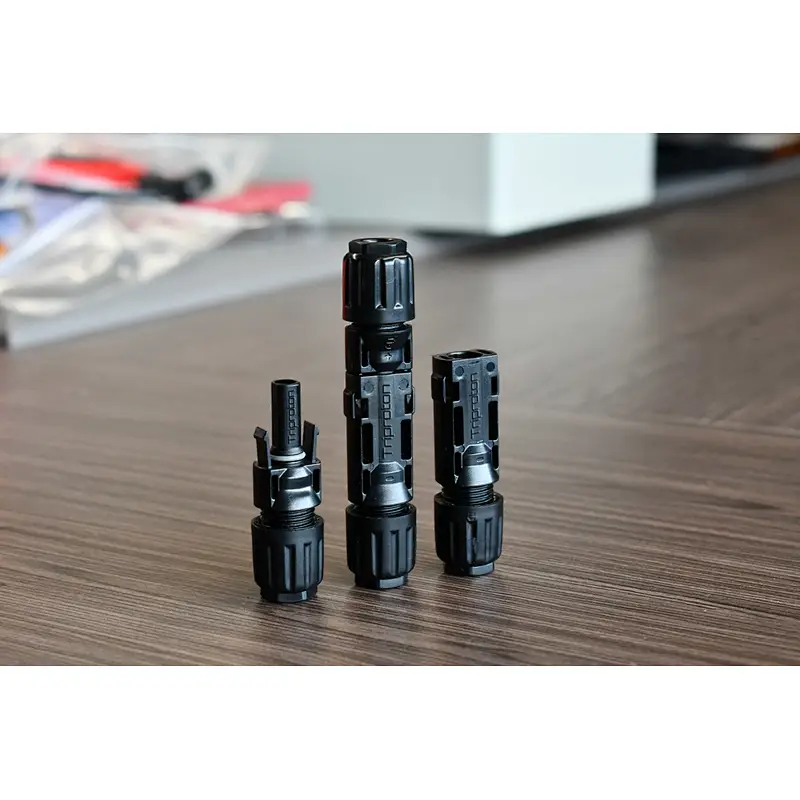

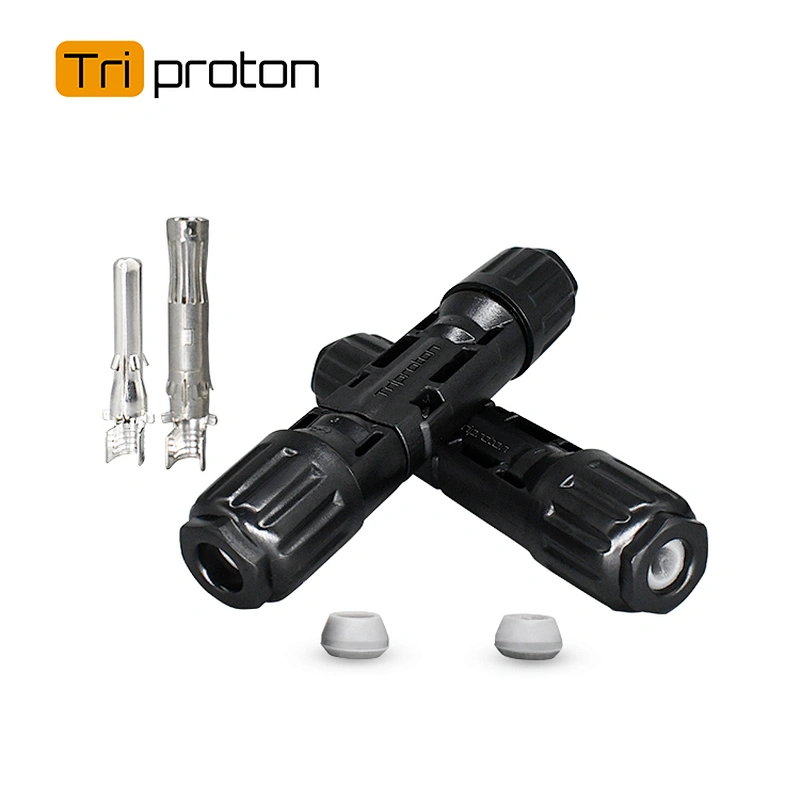

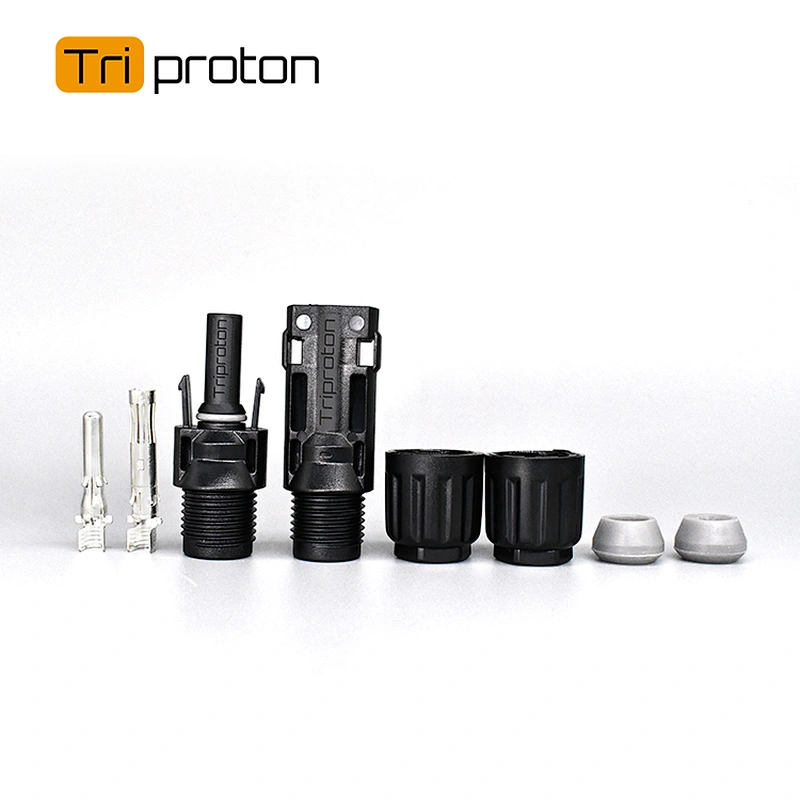

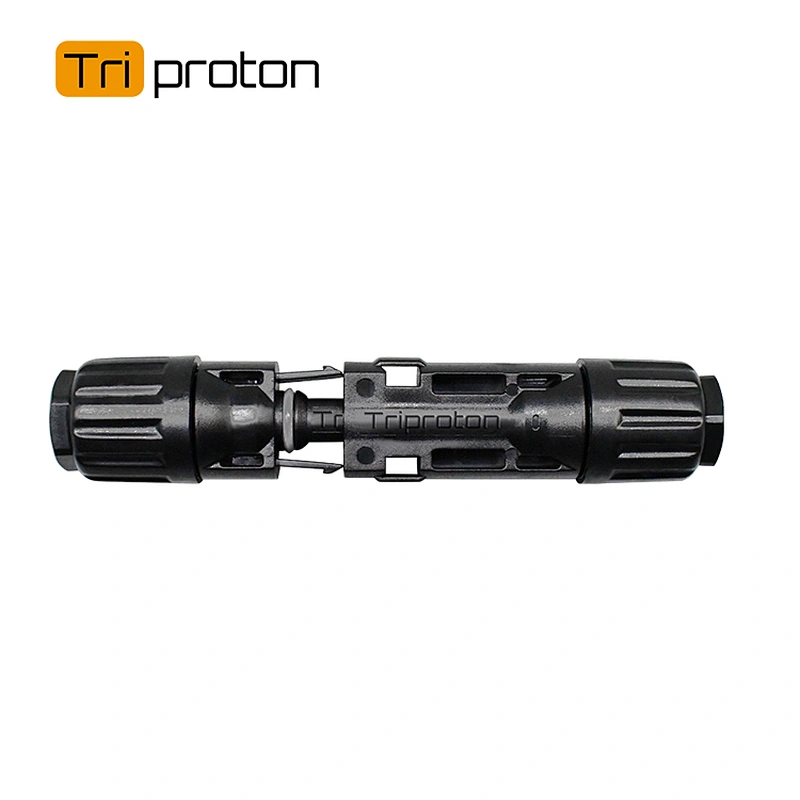

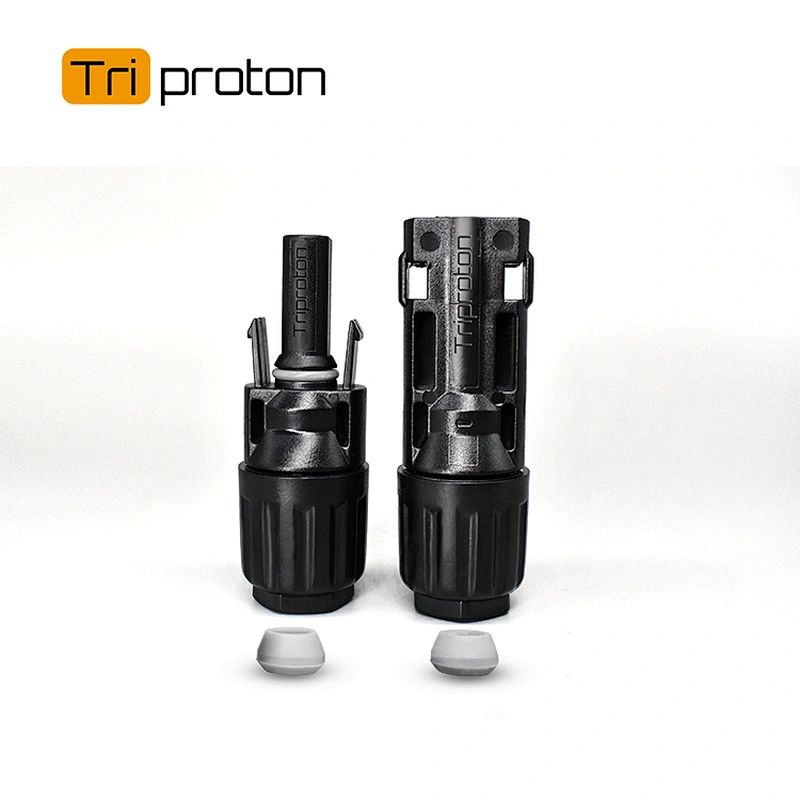

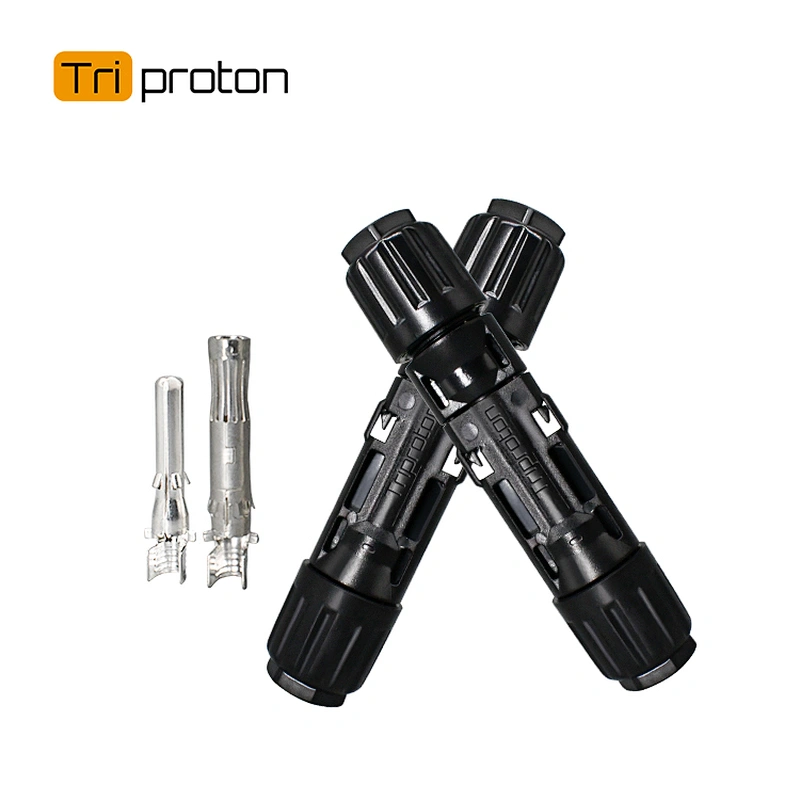

IP68 Waterproof PV 1500V DC Solar Connector
